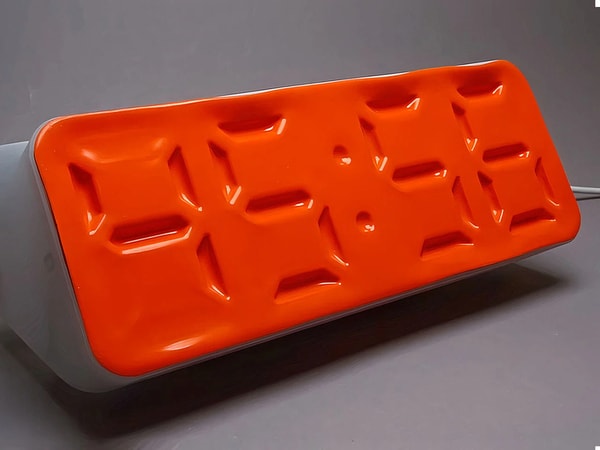

The Air Powered Segment Clock by soiboi soft is a DIY timepiece that replaces LED segments with a pneumatic display system. The Air Powered Segment Clock uses vacuum pressure to pull sections of a flexible membrane inward, forming the segments of each digit. Each number is built from seven individual "memory cells" that hold their shape even after pressure is removed, allowing the display to persist until the next command is triggered. The four-digit layout is controlled by a microcontroller, coordinating air flow through a network of tubes connected to each segment.
The structure is assembled using 3D-printed components and a system of vacuum lines that activate each segment independently. When pressure is released, the membrane returns to a flat state, resetting the display. A central indicator marks changes between seconds, minutes, and hours, while an added stopwatch mode expands functionality beyond standard timekeeping. The system mirrors aspects of digital memory architecture.
Pneumatic Membrane Desk Clocks
Air Powered Segment Clock Uses Vacuum Pressure to Form Digits
Trend Themes
1. Pneumatic Segment Displays - Emerging use of vacuum-actuated membranes as visual segments enables low-power, tactile displays that retain state without continuous energy.
2. Memory-forming Elastomers - Materials that hold deformed shapes after transient pressure cycles suggest low-energy bistable interfaces for information retention.
3. 3d-printed Modular Pneumatics - Combining accessible additive manufacturing with tube-based vacuum networks facilitates customizable, repairable electromechanical devices built outside traditional supply chains.
Industry Implications
1. Consumer Electronics - Clocks, appliances, and signage could adopt air-driven displays that offer novel aesthetics and persistent visuals with reduced electronic demand.
2. Industrial Instrumentation - Process panels and indicators in harsh environments might benefit from mechanically simple, energy-frugal readouts resistant to electromagnetic interference.
3. Soft Robotics and Haptics - Actuators and feedback interfaces that rely on vacuum-shaped membranes could enable expressive, low-voltage tactile surfaces and programmable touch elements.
